Products description

LDB explosion-proof silicone rubber heating plate is made of heat resistant rubber, metal heating element, grounding metal and explosion-proof power connection kit. When power is on, it will produce heat and transfer through heat resistant rubber. It is ideal for use in maintaining temp of oil tank, pool and vessel. It is designed and manufactured according to increased-safety explosion-proof requires and approved for division1, 2 and explosive gas(T3 group) in hazardous areas. It can be used for heating, heat preservation and anti-freezing of tank, reaction column, distillation column and relevant containers in the industries of petroleum, chemicals, foodstuff, machinery, etc..

Features

• Heating fast&even, high thermal effiency and good heat transfer;
• Strong adaptability;
• Can be used for indoor, outdoor and division1, 2 and explosive gas(T3 group) in hazardous areas;
• Safe and reliable, long life time, not easy to aging;
• Light weight, easy installation;
• Can be made as per your requests;

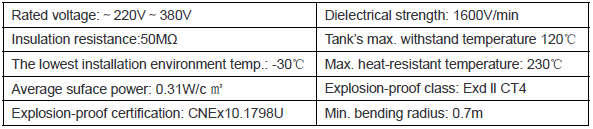

 Tech. parameters

 Product model

Model	Size	Rated Power
LDB-A	610*305mm	600W
LDB-B	610*610mm	1200W
LDB-C	1220*610mm	2400W



CAUTION:

If it is to be installed on non-metallic vessels, or if product contained in the vessel is highly temperature sensitive, please contact our technical department.
